Factory Direct · Sunroof Film & Tint Film
Sunroof Film & Auto Window Tint Film — Cooler Cabins, Clearer Views, Better Protection
By TECHLON · Shanghai, China · Est. 10+ Years in Automotive Film · Exported to 60+ Countries
If you have ever climbed into a parked car with a panoramic glass roof on a summer afternoon, you know the problem instantly: the cabin is an oven. A sunroof film — a dedicated line of our auto window tint film — rejects solar heat, blocks ultraviolet radiation, cuts glare and protects interiors, all without changing the view out of the roof. For distributors, auto chains and tint shops, it is also one of the fastest-growing add-on categories: every SUV with a glass roof is a candidate.
What Is Sunroof Film?
Sunroof film is a solar-control film engineered specifically for sunroof and panoramic glass-roof applications. It belongs to the same product family as window tint film — sharing the core functions of heat rejection, UV protection and glare control — but is specified for the extreme conditions a roof window faces: direct overhead sun, the largest glass area in many modern vehicles, and long hours of exposure.
The category covers nano-ceramic, sputter and UV400-grade films. At TECHLON, sunroof film (model prefix TT-RF) sits inside our auto window tint film range, which also includes nano-ceramic, UV400 skin care, sputter and chameleon films — one factory supplies every glass-coverage need.
Why Panoramic Glass Roofs Overheat — and What Tint Film Does
Automotive glass is transparent to most of the sun’s energy. A large sheet of glass sitting directly above passengers turns the cabin into a greenhouse, producing three problems: heat build-up that forces air-conditioning to work harder, UV exposure that reaches skin and fades upholstery, and glare that makes driving uncomfortable.
Sunroof film vs. no film — what changes
- Heat — IR rejection up to 99%, cabin stays cooler under direct sun
- UV — rejection up to 99.9%, protects passengers and prevents interior fading
- Glare — reduced 30%–90%, more comfortable and safer driving
- Privacy & style — even, deep shades from 5% to 70% VLT
Sunroof Film — Full Technical Specifications
Every order is backed by real, batch-tested numbers. The sunroof film range is available in the following configurations:
| Specification | Available Range / Options |
| Material | Nano Ceramic (recommended) · Nano Carbon · Metallic Sputter · Dyed · IR · Chameleon |
| VLT (Visible Light Transmission) | 5% / 15% / 20% / 35% / 50% / 70% / 80% (darker shades typical for sunroofs) |
| IR Rejection (Heat) | 60% / 80% / 90% / 92% / 95% / up to 99% |
| UV Rejection | 99% / 99.9% / 100% |
| TSER (Total Solar Energy Rejection) | 40% / 50% / 60% / 66% / 70% / 75% |
| Glare Reduction | 30% / 50% / 70% / 90% |
| Thickness | 1.5 / 2.0 / 2.5 / 3.0 mil (mainstream 2.0 mil) |
| Color / Shade | Charcoal / Black / Grey / Green / Blue / Chameleon |
| Structure / Layers | 2-Ply / 3-Ply / Multi-Layer, with scratch-resistant coating |
| Signal Friendly | Yes — non-metallic, no GPS / ETC / mobile interference |
| Warranty | 3 / 5 / 7 / 10 years |
| Roll Size | 1.52 m × 30 m (standard) · 0.5 m × 30 m (windshield) · custom widths 0.1–1.82 m |
| MOQ | 1 Roll (standard) / 2 Rolls · OEM & custom orders negotiable |
| Application | Car Side Window · Windshield · Sunroof · Building Glass |
| Certifications | RoHS 10-item PASS (ST20260727003, incl. TT-RF21) · SGS · TUV · SKINSAFE · ISO 9001 · REACH |
Signal-Friendly: The EV and Sensor Question
Metallic films can block GPS, toll transponders, phone signals and even ADAS radar — a real problem in modern cars where antennas and sensors sit close to the glass. Our non-metallic nano-ceramic sunroof film delivers high heat rejection without the metal layer, so GPS, 5G, ETC and ADAS keep working normally. This makes it a natural fit for electric vehicles and any customer who values connected driving.

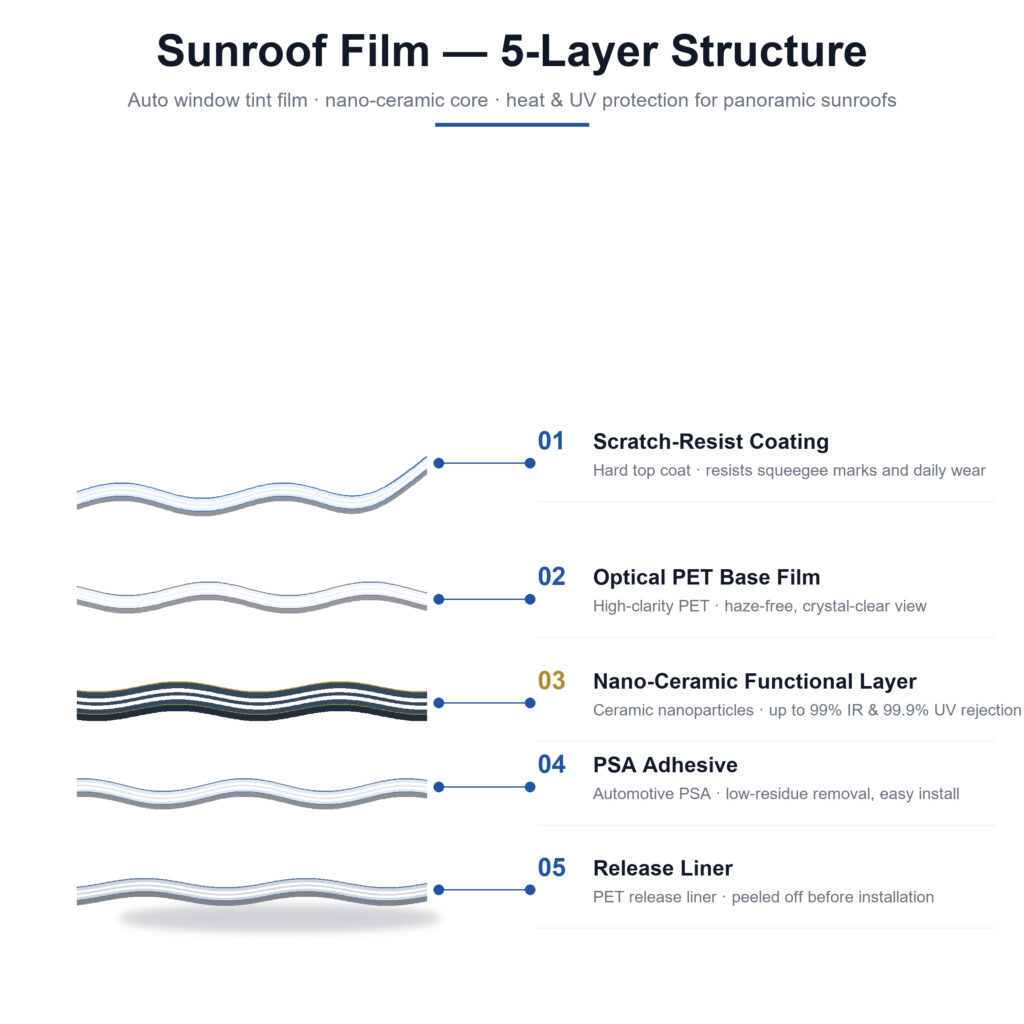

Built in Five Layers for Long-Term Performance
- Scratch-Resist Coating — a hard top coat that shrugs off squeegee marks and daily wear.
- Optical PET Base — high-clarity polyester that keeps the sky view haze-free and distortion-free.
- Nano-Ceramic Functional Core — ceramic nanoparticles that reject infrared (up to 99%) and ultraviolet (up to 99.9%).
- PSA Adhesive — automotive-grade pressure-sensitive adhesive for a strong bond and low-residue removal.
- Release Liner — a PET liner that protects the adhesive and is peeled off at installation.
About Shanghai Techlon Co., Ltd.

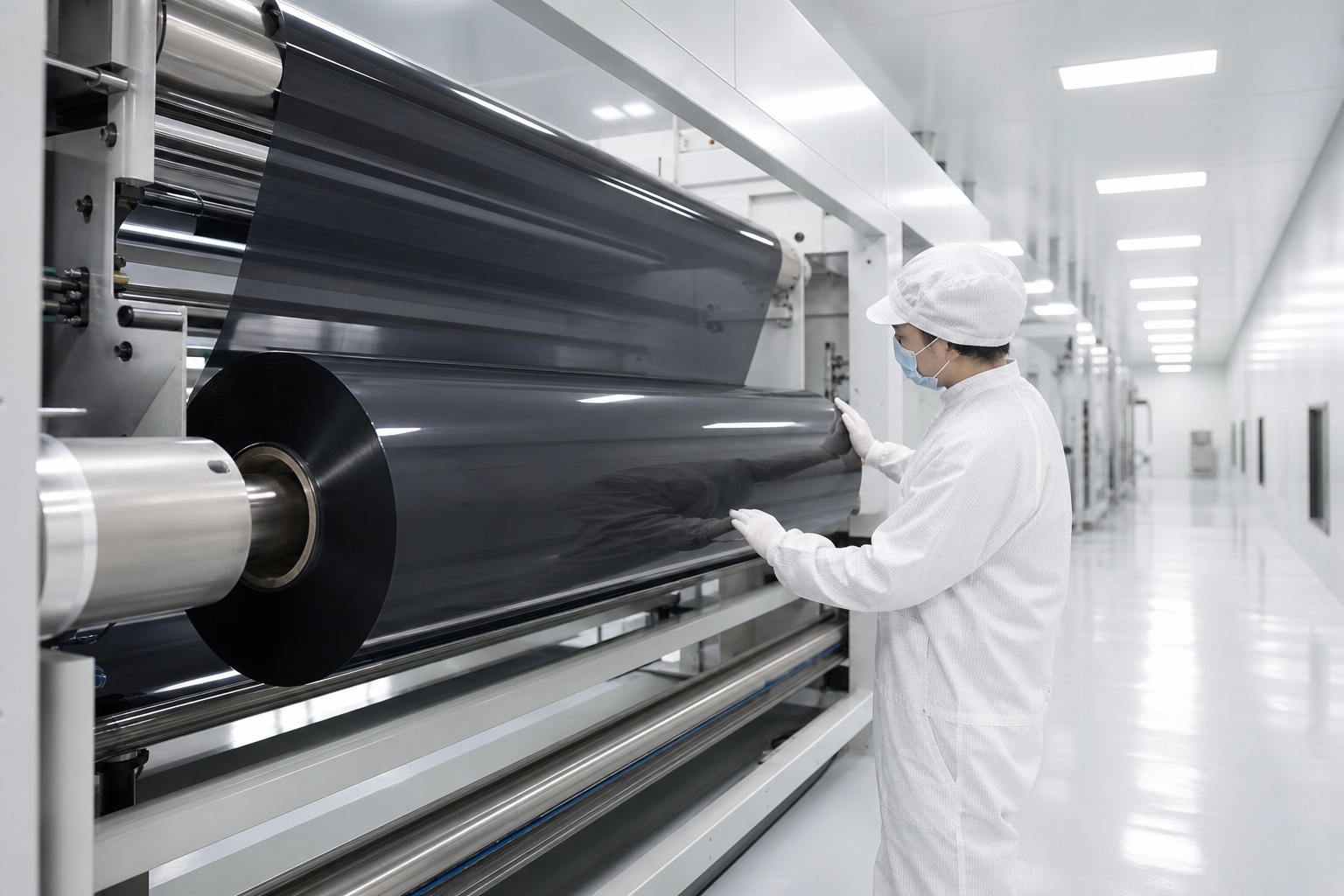

TECHLON is a Shanghai-based automotive film manufacturer with 10,000+ m² of production space, 100+ employees, 10+ production lines and a dust-free cleanroom environment. Every batch passes incoming inspection, online inspection and finished-goods sampling before shipment, and we have exported to 60+ countries over more than 10 years of industry experience.
Factory & service highlights
- Factory direct pricing — no middle layers, MOQ from 1 roll
- OEM / ODM welcome — custom roll lengths, widths, packaging and private label
- Fast lead time — 3–5 working days for stock sizes, 10–15 for custom orders
- Full range — sunroof, nano-ceramic, UV400, sputter and chameleon films under one roof
- Flexible shipping — sea (FCL/LCL), air and express (DHL/FedEx/UPS) · FOB / CIF / EXW / DDP
Frequently Asked Questions — Business & Sourcing
Are you a manufacturer or a trading company?
We are a factory-direct manufacturer. Shanghai Techlon Co., Ltd. owns a 10,000+ m² production base with 10+ production lines, 100+ employees and a dust-free cleanroom, exporting to 60+ countries for more than 10 years.
What is your MOQ?
MOQ is 1 roll for standard stock sizes, and 2 rolls for certain configurations. Custom sizes, colors and OEM/ODM orders are negotiated case by case.
What is your lead time?
Stock orders ship in 3–5 working days. Custom orders (size, color, packaging) take 10–15 working days.
Do you provide free samples?
Yes, free small samples with freight collect. Custom samples take 5–7 working days.
What payment methods do you accept?
T/T, L/C, Western Union and PayPal. Standard terms: 30% deposit, 70% balance before shipment. L/C at sight is accepted for orders above USD 50,000.
Can you support OEM / ODM and private label?
Yes. Private label (liner LOGO, paper core, custom color box), custom packaging, LOGO printing and custom sizes are all supported, plus installation tooling and marketing material support.
What shipping terms and documents do you provide?
FOB, CIF, EXW and DDP via sea, air or express (DHL/FedEx/UPS). Documents include CO, Form E, MSDS, test reports and packing lists.
What warranty and certifications do you offer?
Window tint film carries up to a 10-year warranty (3/5/7/10-year options). The range is RoHS 10-item certified (report ST20260727003, including sunroof model TT-RF21), SGS tested, ISO 9001, TUV, SKINSAFE and REACH compliant.
